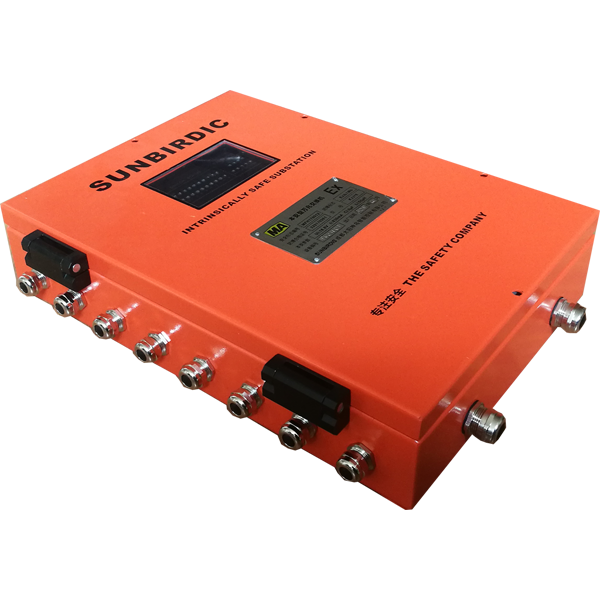

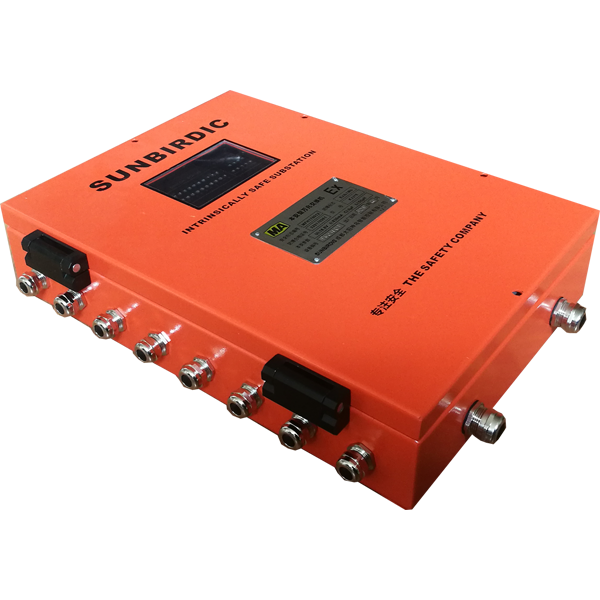

KJJ18A本安型千兆交换机

KJJ18A 18口全千兆可管理以太网交换机,提供比传统工业现场百兆快速以太网更高的吞吐量,适用于时间敏感的应用场合以承载视频、语音和数据流。
凭借强大的S/W和H/W特性, 可同时提供可靠和优质的服务,适用于各种工业应用场合。
工作电压:DC18V
工作电流:≤800mA
以太网电接口:12个 10/100/1000M 自适应
以太网光接口:6个 100/1000M SFP

► 12 10/100/1000M RJ45 Copper ports
► Support 9K Jumbo frames
► Layer 2 Line-Speed Switching Fabric, non-blocking
► Layer 4 ACL (Access Control List), QCL (QoS Control List),Port Control
► Network redundancy LACP, STP,RSTP, MSTP
► ERPS(G.8032),Ethernet Ring Protection Switching
► Port-based VLANs, IEEE 802.1Q tag-based VLANs, IEEE802.1v
protocol-based VLANs, IEEE 802.1ad Double Tagging, Private VLAN, MVR
►Multicasting support IGMP v1/v2/v3, proxy & snooping
►IEEE 802.1X Port-based access control / RADIUS Server
►Per VLAN mirroring
►Reverse power protection
►SNMP v1/v2c/v3, Trap
►Port Power Saving
►-40~75ºC operating temperature
►IP 67 Protection
►1.5KV Hipot, 2KV surge immunity on RJ45 Copper port
►Support IPV4/V6

网络Ethernet
Operating Mode Store and Forward, L2 wire-speed/non-blocking switching engine
MAC address  MAC addresses 8K
Packet Buffer 4 Mbits
Jumbo frame 9K
Switching Fabric / Back Plane 28Gbps
RJ45 Copper ports
Speed 10/100/1000 Mbps
MDI/MDIX Auto-crossover Support straight or cross wired cables
Auto-negotiation/Duplex 10/100/1000 Mbps speed auto-negotiation; Full & Half Duplex
Ethernet Port Protection 1.5KV VRMS 1minute(Hipot), 2KV surge immunity on RJ45 Copper ports
Fiber Ports
Port Types supported 100/1000 Base SFP Slot
Fiber port connector LC/RJ45 connector for fiber ports
Optimal fiber cable Typical 50 or 62.5/125 μm for multimode (mm)
Typical 8 or 9/125 μm for single mode (sm)
协议和标准 Protocols & Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D/w/s, IEEE 802.1Q/p, IEEE 802.1ab, IEEE 802.1X,IEEE 802.3ad LLDP, IPv4/IPv6, SNMP v1/v2c/v3, DHCP Option 82, BootP, TFTP, ARP, RARP, Telnet, Syslog, Flow Control, Back Pressure, ICMP, UPD, TCP
网络冗余 Network Redundancy
ERPS(G.8032) Link Loss Recovery < 50ms@250pcs
Network Topology Optimize Functions Ring Coupling, Multiple-Ring, Dual-Homing
Spanning Tree Protocol IEEE 802.1D/1w/1s, STP/RSTP/MSTP
Port Trunk / LACP Static Trunk or LACP (Link Aggregation Control Protocol)
Bridge, VLANs, Protocol
Flow Control IEEE 802.3x (Full Duplex) and Back-Pressure (Half Duplex)
Max VLANs 256
VLAN Types Port-Based VLAN, Private VLAN, MAC-Based VLAN
IEEE 802.1Q tag-based VLAN, IP Subnet-Based VLAN, Voice VLAN
IEEE 802.1ad Double Tagging (QinQ), Protocol-Based VLAN, VCL
Multicast protocols IGMP v1, v2, V3, up to 255 multicast groups
IGMP snooping, querying, MLD Snooping, GVRP
Immediate leave and leave proxy, Throttling and filtering
LLDP IEEE 802.1ab LLDP / LLDP-MED
Spanning Tree Protocol IEEE 802.1D/1w/1s, STP/RSTP/MSTP
Port Trunk / LACP Static Trunk or LACP (Link Aggregation Control Protocol)
Traffic management & QoS
Priority IEEE 802.1p QoS, Ingress / Egress, QCL
Number of queues per port 8
Scheduling schemes SPQ, WRR, SPQ+WRR
Traffic Shaper Port-based shaping
安全 Security
Port Security IP and MAC-based Access Control/Filter, Auth User / Privilege Level Control
IEEE 802.1X Authentication Network Access Control / RADIUS / TACACS+ Server
Storm Control Multicast / Broadcast / Flooding Storm Control / Port Access Control / Limiters
管理 Management
User Management Interfaces CLI (Command Line Interface) & telnet
Web-based Management
SNMP V1, V2c, V3
Management Security HTTPs, SSH, Access Management, Loop Protection
RADIUS Client for Management
Upgrade & Restore TFTP for Configuration Import / Export
TFTP for Firmware Upgrade
Diagnostic Syslog, Level Info / Warning / Error, Detailed Syslog
Port Mirror, Per VLAN mirroring, CPU Load Monitor, Traffic Counter
VeriPHY Ethernet Cable Diagnostics, ICMP Ping
MIBs RFC 1757RMON 1, 2, 3, 9; RFC 2674 Q-Bridge MIB
RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 2233 IF MIB
DHCP Client Mode, Server Mode
NTP/SNTP YES
System Status Device info/status; Ethernet port status
Green Ethernet Port Power Savings
Layer 4 Security Access Control List
Power
Power Input Redundant Power Input, Removable Terminal Block
Input Voltage Range 9-24VDC
Reverse power protection YES
Transient protection > 15, 000 Watts peak
Power Consumption 17 Watt
面板指示 Indicators
Power status indication Power Input status
Ethernet port indication Link & speed
Environmental and Compliances
Operating Temperature -25~75℃ (Cold startup at -25℃)
Storage Temperature -40~85℃
Humidity 5~95% (Non-Condensing)

KJJ18A本安型交换机使用说明书v1.1

KJJ18A本安型交换机WEB管理配置说明书v1.1



型号

端口配置 安装方式 供电电源

10G SFP+

GE SFP GE RJ45 FE SC FE RJ45 NPI 壁挂 机架 导轨 嵌入 DC

AC

KJJ18A

/

6 12 / / 1 18V

DG518 / 6 12 / / 1 9-24V
